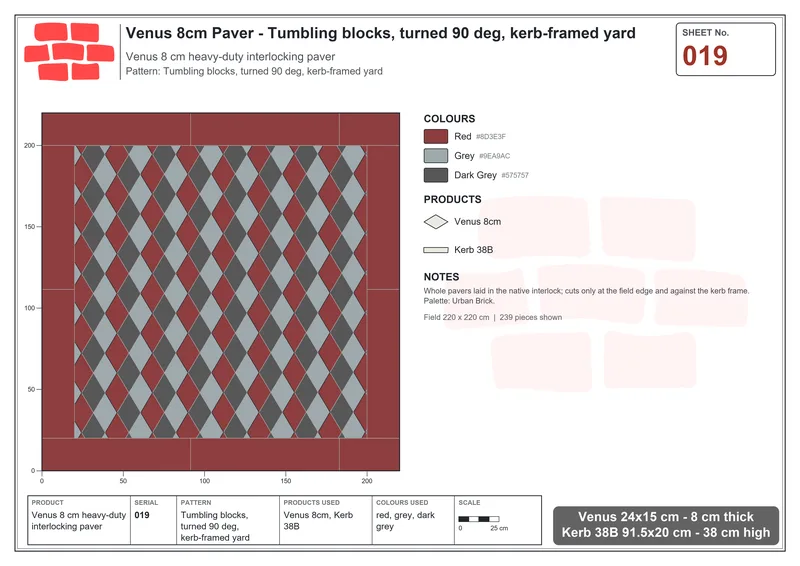

VEN8-019 · Tumbling blocks, turned 90 deg, kerb-framed yard
Interlock (Pasco) 24x15 cm · 8 cm thick · red + grey + dark grey
3D sample at real size · AR on your floor
Pieces per m²
| dark grey | 17.7 |
|---|---|
| red | 20.7 |
| grey | 17.7 |
| total | 56.1 |
Specifications
| Compressive strength | 49 N/mm² |
|---|---|
| Water absorption | ≤ 5 % |
| Density | 2200 – 2300 kg/m³ |
| Dimensional tolerance | length / width ±3 mm · thickness ±2 mm |
| Solar reflectance index (SRI) | 29 |
Photos
PDF coming soon
