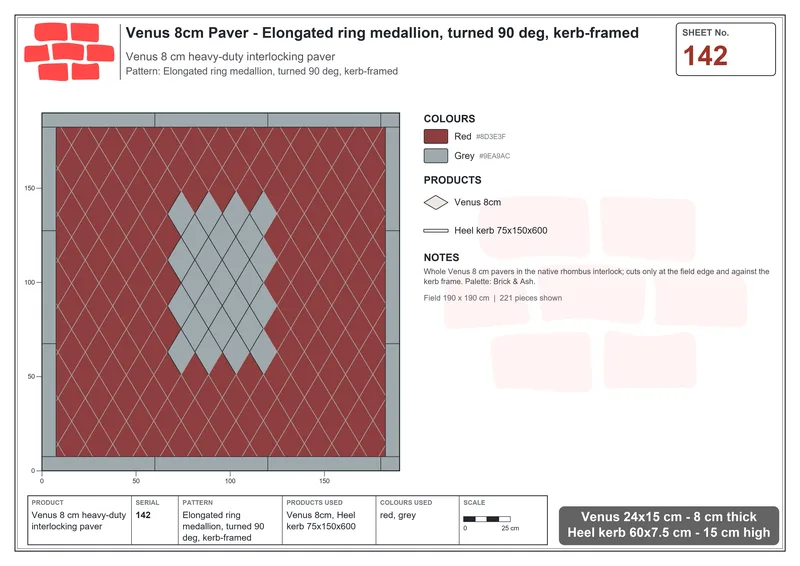

VEN8-142 · Elongated ring medallion, turned 90 deg, kerb-framed
Interlock (Pasco) 24x15 cm · 8 cm thick · red + grey
3D sample at real size · AR on your floor
Pieces per m²
| red | 45.8 |
|---|---|
| grey | 10.3 |
| total | 56.1 |
Specifications
| Compressive strength | 49 N/mm² |
|---|---|
| Water absorption | ≤ 5 % |
| Density | 2200 – 2300 kg/m³ |
| Dimensional tolerance | length / width ±3 mm · thickness ±2 mm |
| Solar reflectance index (SRI) | 29 |
Photos
PDF coming soon
More designs of this size
VEN8-143Solid rhombus medallion, turned 90 deg, kerb-framed
VEN8-144Solid rhombus medallion, kerb-framed
VEN8-145Solid rhombus medallion, turned 90 deg, kerb-framed
VEN8-146Solid rhombus medallion
VEN8-147Open ring medallion, kerb-framed
VEN8-148Open ring medallion, turned 90 deg, kerb-framed
VEN8-149Open ring medallion
VEN8-150Open ring medallion, turned 90 deg, kerb-framed
VEN8-151Hexagon medallion with core, turned 90 deg, kerb-framed
VEN8-152Hexagon medallion with core
VEN8-153Hexagon medallion with core, turned 90 deg, kerb-framed
VEN8-154Hexagon medallion with core, kerb-framed
All designs of this size Photos Blueprints
