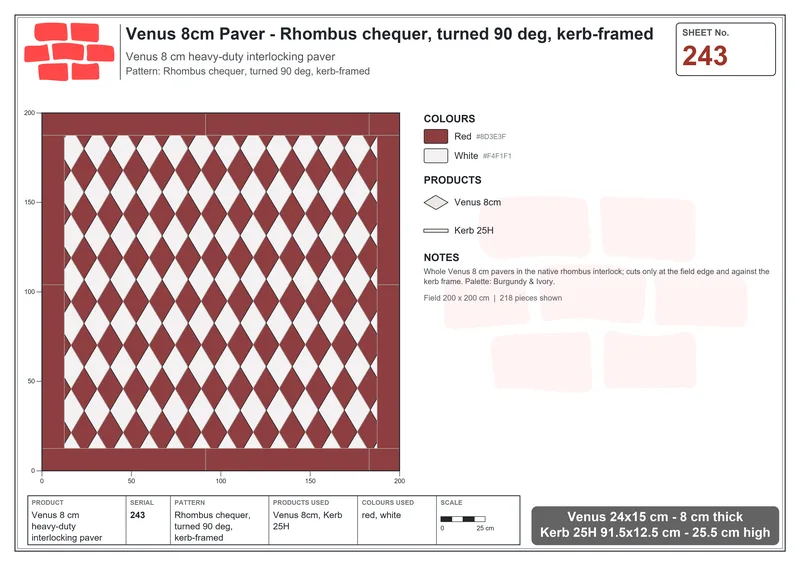

VEN8-243 · Rhombus chequer, turned 90 deg, kerb-framed
Interlock (Pasco) 24x15 cm · 8 cm thick · red + white
3D sample at real size · AR on your floor
Pieces per m²
| red | 29.6 |
|---|---|
| white | 26.5 |
| total | 56.1 |
Specifications
| Compressive strength | 49 N/mm² |
|---|---|
| Water absorption | ≤ 5 % |
| Density | 2200 – 2300 kg/m³ |
| Dimensional tolerance | length / width ±3 mm · thickness ±2 mm |
| Solar reflectance index (SRI) | 29 |
Photos
PDF coming soon
More designs of this size
VEN8-244Tri-colour diagonal stripe, kerb-framed
VEN8-245Wide tri-colour lanes, laid on the diagonal, kerb-framed
VEN8-246Crossing rhombus lanes, wide, kerb-framed
VEN8-247Wheel-track lanes, turned 90 deg, kerb-framed
VEN8-248Concentric square courses, kerb-framed
VEN8-249Gate-mouth entry lane, turned 90 deg, kerb-framed
VEN8-250Centre yard band
VEN8-001Plain interlock yard, kerb-framed yard
VEN8-002Plain interlock yard, turned 90 deg, kerb-framed yard
VEN8-003Plain interlock yard, laid on the diagonal, kerb-framed yard
VEN8-004Plain interlock yard, turned 90 deg
VEN8-005Plain interlock yard, laid on the diagonal, kerb-framed yard
All designs of this size Photos Blueprints
